Semi-automatic packaging and filling equipment

MPPFO 02 — semi-automatic PE film packing

One weighing unit for free-flowing products such as washing powder, plant soil, pellets and dry feed. Packs in polyethylene or multilayer film.

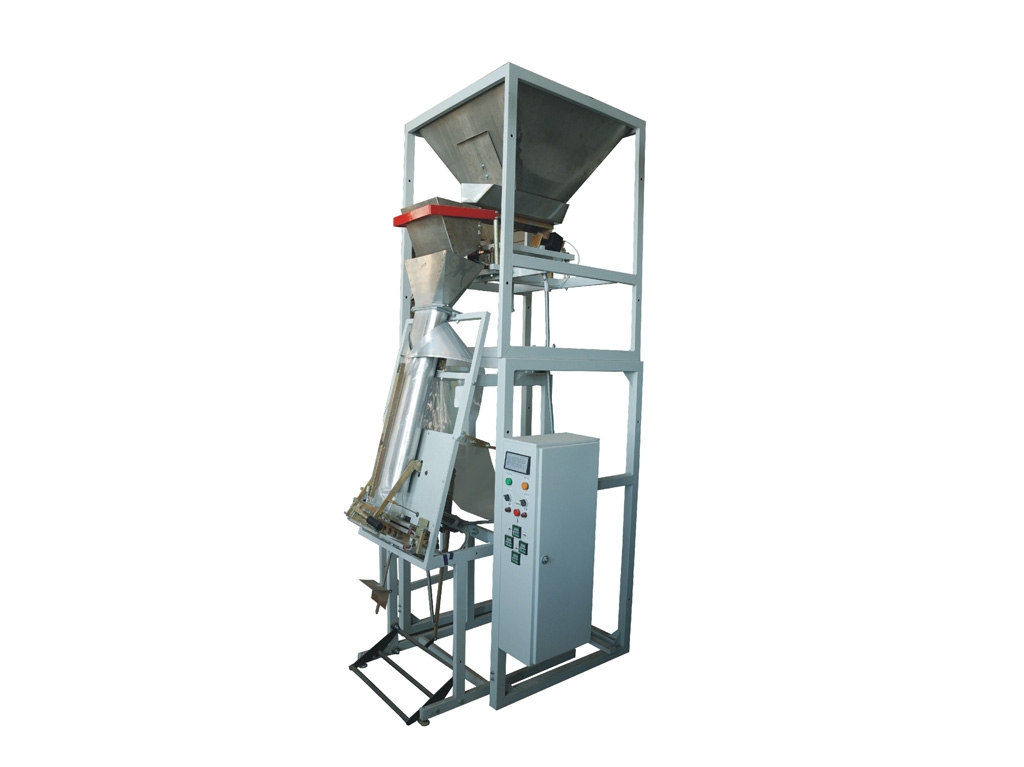

MPPFO 02 packaging and filling equipment
The equipment configuration is confirmed before ordering.

Packaging equipment

Product overview

MPPFO 02 is a semi-automatic machine with one electronic weighing unit for free-flowing food and non-food products. It packs in polyethylene or multilayer film. The product must not stick or form lumps.

  • One electronic weighing unit
  • PE or multilayer film
  • Dose range 0.1–5.0 kg

MPPFO 02 — semi-automatic PE film packing

Free-flowing product → weighing → PE film bag

  1. Input

    Free-flowing product and PE or multilayer film

  2. Operation

    Weighing and packing in film

  3. Result

    Dosed product in a bag

Model configuration

One electronic weighing unit. The semi-automatic configuration uses polyethylene or multilayer film.

These specifications apply to 02 with one weighing unit. Maximum output is up to 6 packs/min; the working rate depends on the product, dose and configuration. Film and configuration are agreed for the application.

Prepare an enquiry

Prepare your requirements

Share the details you know. If specifications are undecided, describe your product and the result you need.

Request a quotation

One weighing unit, PE film and a distinct product application

02 differs from 01 in film material and product applications. For washing powder, soil or feed, the flow of the specific product matters and is checked when selecting the configuration.

  • PE or multilayer film rather than the PP configuration of 01
  • One weighing unit; 0.1–5.0 kg for this configuration

Film and bag format

The bag is made from film during packing. Film material and bag format are agreed for the product and target dose.

  • Polyethylene or multilayer film
  • These specifications apply to 02 with one weighing unit. Maximum output is up to 6 packs/min; the working rate depends on the product, dose and configuration. Film and configuration are agreed for the application.

Specifications for this configuration

Operating mode
Semi-automatic
Packaging material
Polyethylene or multilayer film
Maximum output
up to 6 packs/min
Dose range
0.1–5.0 kg
Film width
up to 550 mm
Bag length
up to 480 mm
Power supply
220–230 V / 50 Hz
Installed power
1.5 kW
Configuration dimensions
up to 1200 × 1200 × 2600 mm
Loading hopper
at least 110 L
Weight
up to 250 kg
Weighing units
1

Questions before ordering

Can 02 pack plant soil or washing powder?

These applications are included for compatible free-flowing products that do not stick or form lumps. Describe the composition, flow and target portion so we can select a configuration.

How does 02 differ from 01?

02 uses PE or multilayer film and has a dose range of 0.1–5.0 kg. 01 uses PP or multilayer film. Material, portion size and configuration are selected for the product.
