Semi-automatic packaging and filling equipment

MPPFO 18 — semi-automatic weighing dispenser for tea and coffee

Tea, coffee, herbs and spices into prepared containers. Weighed dosing with a hopper of at least 72 L; the portion is agreed for the product.

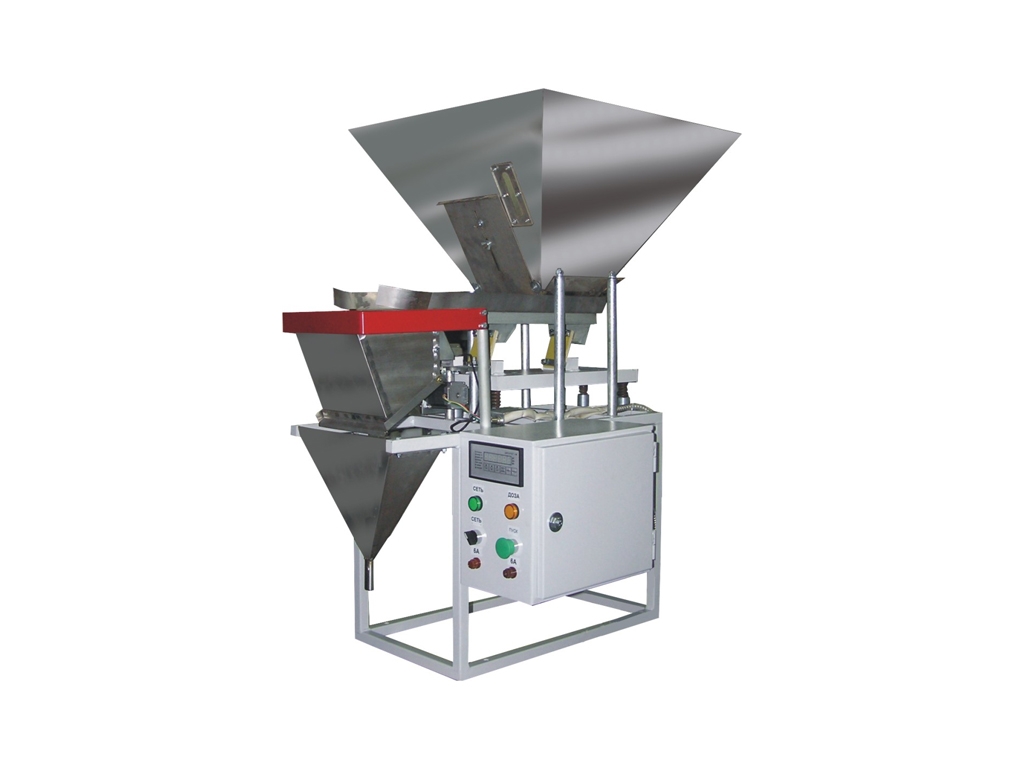

MPPFO 18 packaging and filling equipment
The equipment configuration is confirmed before ordering.

Packaging equipment

Product overview

Weighed filling of tea, coffee, herbs, spices and compatible products into prepared containers. The semi-automatic configuration has a hopper of at least 72 L and is selected for the product and target portion.

  • Weighed dosing
  • Prepared containers
  • Hopper at least 72 L

MPPFO 18 — semi-automatic weighing dispenser for tea and coffee

Product → weighed portion → prepared container

  1. Input

    Compatible product and prepared container

  2. Operation

    Weighed dosing of a portion

  3. Result

    Container with the dosed product

Model configuration

The semi-automatic machine involves an operator. Portion, container and filling workflow are agreed for the product properties.

  1. Compatible product and prepared container
  2. Weighed dosing of a portion
  3. Container with the dosed product

The diagram shows the product, operation and result.

Specifications describe configuration 18. Maximum output is up to 25 packs/min; actual output depends on the product, portion and operator workflow.

Prepare an enquiry

Prepare your requirements

Share the details you know. If specifications are undecided, describe your product and the result you need.

Request a quotation

A larger hopper for tea, coffee and herbs

18 has a hopper of at least 72 L for weighed filling of compatible products. 17 has a hopper of at least 15 L and its own small-dose range; the portion for 18 is agreed separately.

  • Tea, coffee, herbs and spices
  • Hopper of at least 72 L

Container and configuration

Prepared-container format and tooling are selected for the product. Container closing and auxiliary transfer are agreed as separate operations.

  • Prepared containers selected for the product and portion
  • Specifications describe configuration 18. Maximum output is up to 25 packs/min; actual output depends on the product, portion and operator workflow.

Configuration selection

Operating mode
Semi-automatic
Container
Prepared containers selected for the product and portion
Maximum output
Up to 25 packs/min
Supply voltage
220–230 V
Supply frequency
50 Hz
Installed power
0.6 kW
Loading hopper
At least 72 L
Weight
No more than 100 kg

Questions before ordering

How is the portion for 18 selected?

Describe the product, target portion and container. We will agree a suitable configuration.

Is container closing included in every configuration?

Required closing and adjacent operations are discussed separately for your process.
