Small doses into prepared containers
Choose 17 for small portions in the 0.5–100 g range. Compare it with 18 for tea, coffee or herbs when a larger hopper is useful.
- Doses of 0.5–100 g
- Hopper of at least 15 L
Semi-automatic packaging and filling equipment

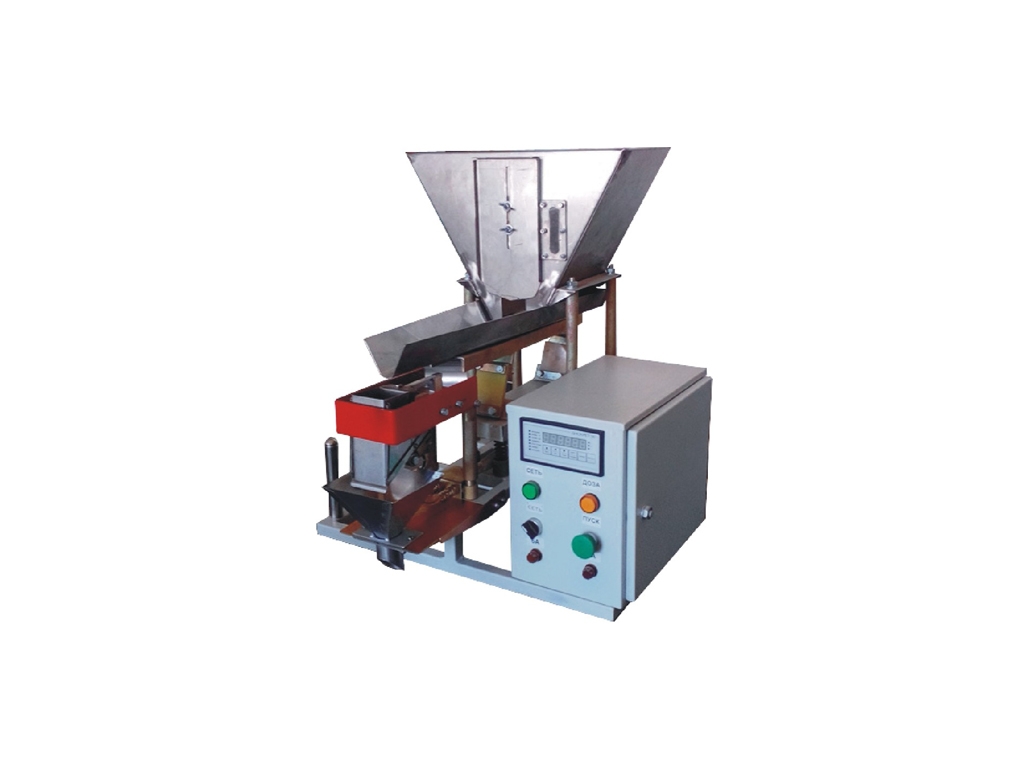

MPPFO 17 — semi-automatic small-dose weighing dispenser
Small weighed doses of 0.5–100 g into prepared containers. A compact semi-automatic dispenser with a hopper of at least 15 L.
Packaging equipment
Product overview
Weighed dosing of 0.5–100 g portions into prepared containers. The compact semi-automatic configuration is selected for the product, portion and container format.
- Dose 0.5–100 g
- Prepared containers
- Hopper at least 15 L
MPPFO 17 — semi-automatic small-dose weighing dispenser
Small portion → weighed dosing → filled container
- Input
Product and prepared container
- Operation
Weighed dosing of a small portion
- Result
Container with a product dose
Model configuration
Filling involves an operator. Container format and workstation organisation are agreed for your product.
- Product and prepared container
- Weighed dosing of a small portion
- Container with a product dose
The diagram shows the product, operation and result.
Specifications describe configuration 17. Maximum output is up to 25 packs/min; actual output depends on the product, portion and workflow. The dose range is not an accuracy rating.
Prepare an enquiry
Prepare your requirements
Share the details you know. If specifications are undecided, describe your product and the result you need.
Request a quotation- Describe the product and its properties
- Target portion, if known
- Prepared-container format and dimensions
- Required output and existing equipment
Container and configuration
Containers are selected for the small portion and product properties. Any subsequent container closing is agreed separately.
- Prepared containers of an agreed format
- Specifications describe configuration 17. Maximum output is up to 25 packs/min; actual output depends on the product, portion and workflow. The dose range is not an accuracy rating.
Configuration selection
- Operating mode
- Semi-automatic
- Container
- Prepared containers of an agreed format
- Maximum output
- Up to 25 packs/min
- Dose range
- 0.5–100 g
- Supply voltage
- 220–230 V
- Supply frequency
- 50 Hz
- Installed power
- 0.6 kW
- Configuration dimensions
- No more than 700 × 800 × 900 mm
- Loading hopper
- At least 15 L
- Weight
- No more than 100 kg
Compare related solutions
Questions before ordering
Does the dose range specify accuracy?
No. Required accuracy and product suitability are discussed separately from the portion range.
How does 17 differ from 18?
17 has a small-dose range of 0.5–100 g and a hopper of at least 15 L. For tea, coffee and herbs, compare 18 with its larger hopper.
