Sealers

Cup sealing equipment

Closing a cup with the approved packaging material.

Request a quotation Call us: +380 95 750 10 00

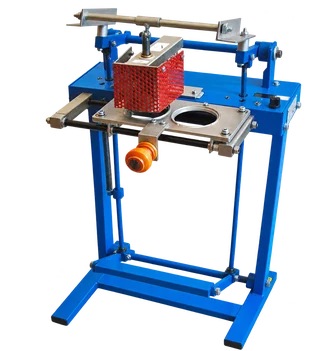

Floor-standing SHSH-4 pedal press for cup lids
The pictured floor-standing SHSH-4 configuration has a pedal and cup holder. Tooling is selected against cup and lid samples.

Sealers and shrink equipment

Product overview

A floor-standing pedal press based on SHSH-4 for heat-sealing individual lids to cups up to 95 mm in diameter. Polymer-film or laminate lids need a heat-sealable layer compatible with the cup. The operator positions the filled cup and lid, moves the holder and seals using the pedal.

  • Floor-standing SHSH-4 configuration
  • Individual lids; cups up to 95 mm
  • Operator-assisted pedal cycle

Cup sealing equipment

From product to result

  1. Input

    Cup and closure material

  2. Operation

    Sealing a compatible cup format

  3. Result

    Sealed cup

The operator’s role

Prepare the product and packaging and check the result. Positioning and cycle initiation are confirmed for the selected configuration.

  1. Prepared cup
  2. Closure zone
  3. Sealing result

The diagram explains the principle. The specific configuration is agreed for your application.

A cup and a bag opening require different working formats. Cup and closure-material compatibility is checked with samples; filling is not automatically included.

Prepare an enquiry

Prepare your requirements

Share the details you know. If specifications are undecided, describe your product and the result you need.

Request a quotation

A prepared cup and individual lid

This is a press for prepared cups with individual lids. Roll feeding and lid punching are not part of the pictured construction. Material compatibility and seal integrity are checked using samples.

  • Cup diameter up to 95 mm; height agreed in the technical brief
  • Temperature 100–200 °C; sealing time 0.5–3 s
  • Cup dosing and filling are separate operations.

Equipment at a glance

Task
Closing cups with packaging material
For selection
Cup, product and closing material
To check
Cup and closing-material compatibility using samples
Model / solution
Cup sealing equipment
Configuration
Floor-standing, based on SHSH-4
Maximum cup diameter
95 mm
Cup height
Agreed in the technical brief
Adjustable temperature
100–200 °C
Sealing time
0.5–3 s
Power supply
220–230 V / 50 Hz
Installed power
0.08 kW
Maximum dimensions
570 × 500 × 830 mm
Maximum weight
35 kg

Questions before ordering

What should I send for cup-format selection?

Prepare a sample of the cup and closure material. Describe the product and required closure result so compatibility with the selected format can be checked.

How can compatibility be confirmed?

Share a sample or description of the material and packaging and the required result. The model, operating mode and supplied configuration are confirmed in the proposal.

Sales enquiry

Quotation request: Cup sealing equipment

For the SHSH-4 press, provide cup and individual lid samples. We will agree the tooling, container height and sealing settings. Cup filling is a separate operation.
